Combined CNC Plasma Cutting Machine

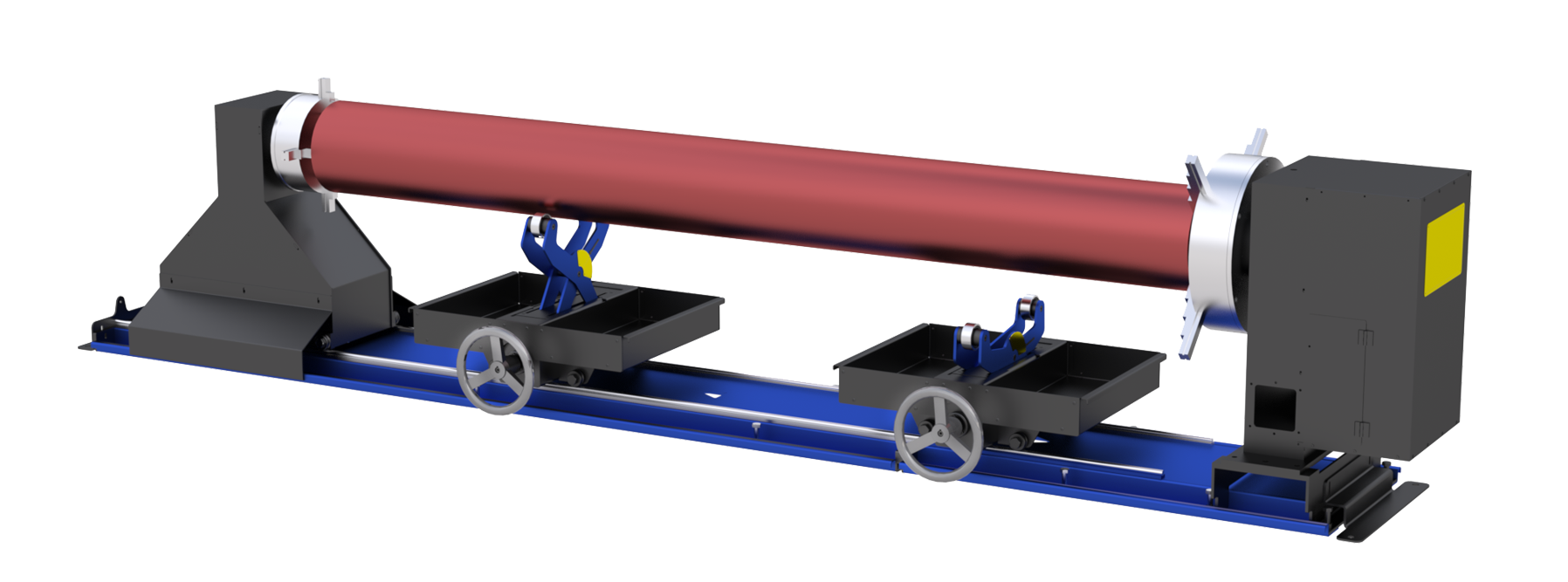

Pipe Cutting Unit

General Specifications
Technical Specifications

Our pipe cutting machines are designed for satisfying the requirements of the user’s to be able to cut pipes and sheet metal with CNC plasma cutting system. First of all, the most important differences has been equipped with Precision Plasma series 130A or 260A precise cutting plasma generator, torch and the required gas selections can be made automatically. For that reason it can cut mild steel, stainless steel and aluminium pipes with high accuracy.

X Axis (Pipe Length)

6000 mm

12000 mm

Min. Working Diameter

Ø 50 mm

Ø 50mm

Max. Working Diameter

Ø 600 mm

PP130A / Max. Pipe Thickness

25 mm

PP260A / Max. Pipe Thickness

40 mm*

* Maximum pipe thickness represent the maximum thickness that the plasma machine can cut. The pipe diameter and pipe length are important factors. The maximum pipe thickness is changible according to the pipe length. For more information about this subject contact 00 90 444 25 26 *Custom lengths can be produced by request
